Narvi Standard Sauna Chimney Kit

Narvi Standard Sauna Chimney Kit

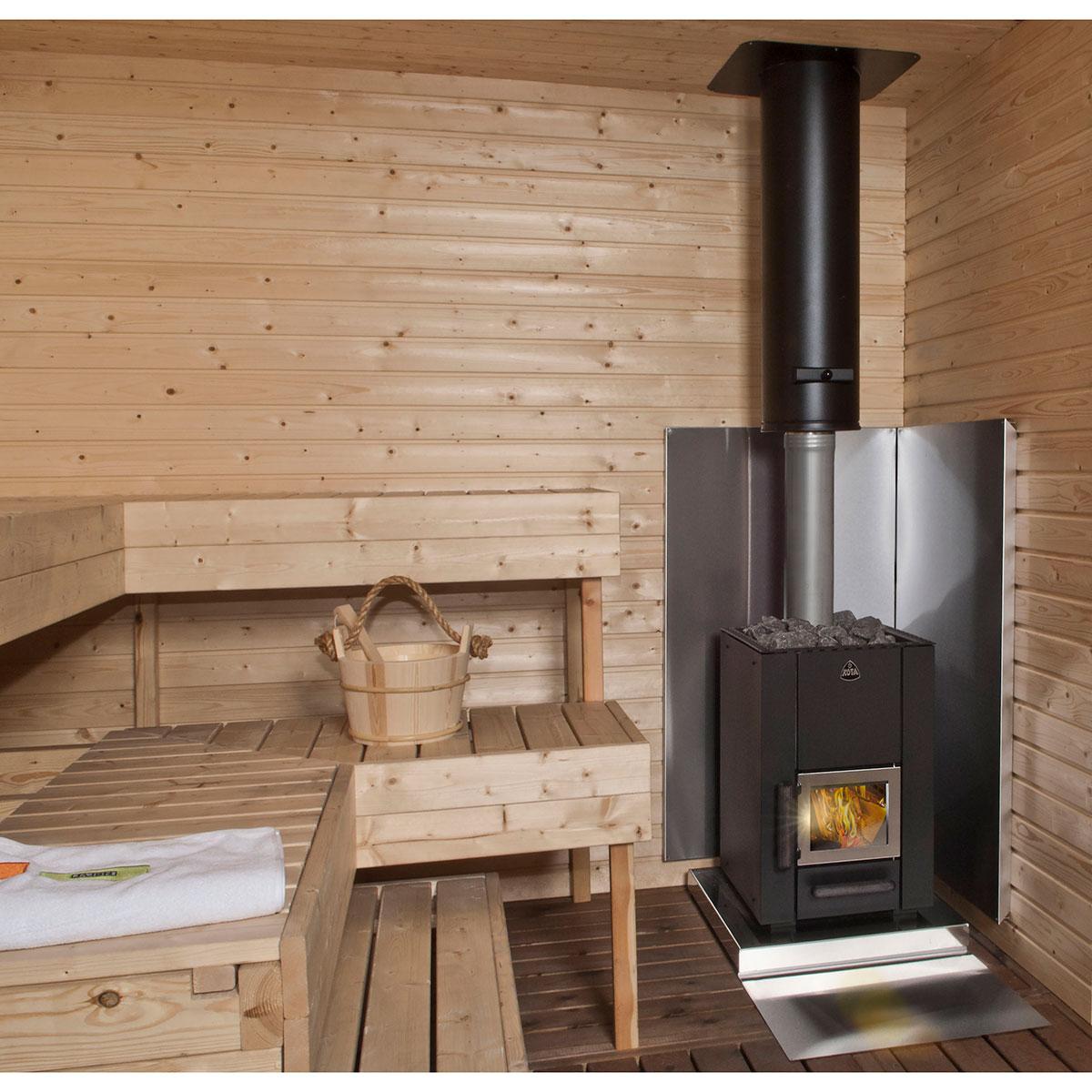

The Narvi Sauna Chimney Kit is designed for Narvi sauna stoves passing vertically through single-ply uninsulated wood ceilings like a barrel sauna.  It does not include the parts required to safely pass through an insulated attic space.

Features

• Built-in Damper: to control heat level & burn rate
• High-Quality Construction: Durable and reliable for long-term use
• Modular Design: Adaptable to various sauna building configurations

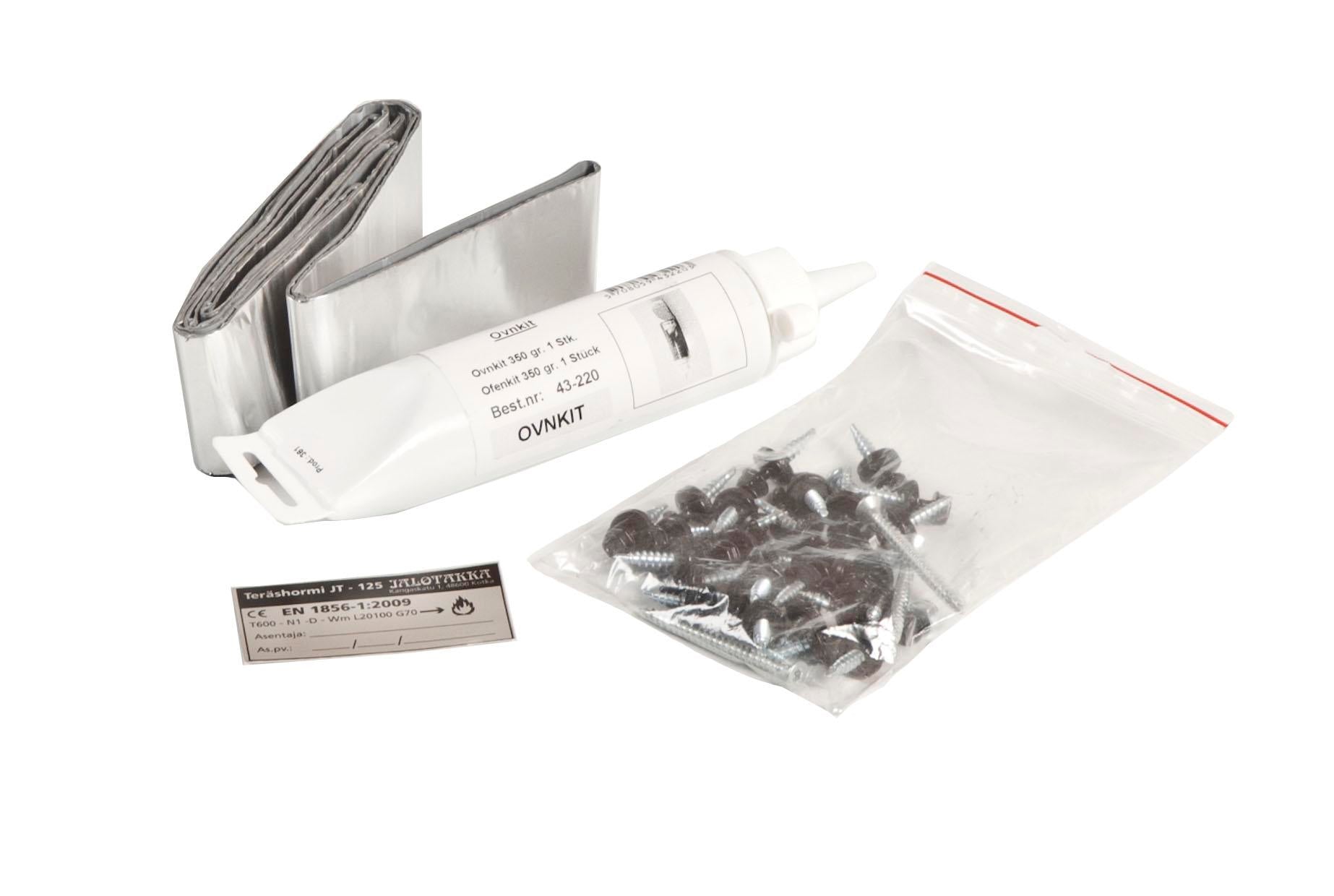

• Complete Kit: Includes all parts and accessories for installation and connection
• CE-Marked:  Meets fire safety class T600 requirements

Specifications

Specifications

• Uninsulated Pipe Length: 39"
• Uninsulated Pipe Inside Diameter:  4.72", fitting all sauna stoves with a smoke outlet diameter of 4.69"(119mm), such as Narvi & HUUM stoves
• Adapter Available: Connects to sauna stoves with a flue outlet of 4.53"(115mm) (such as Harvia stoves) using Narvi Chimney Adapter 6015-111 (sold separately)
• Insulated Pipe Length: 59"
• Overall Length: 98"(2500mm)
• Insulated Section Outer Diameter: 10"
• Inner Pipe Material : Stainless Steel
• Insulated Outer  Pipe Material: Zinc-coated steel
• Finish: Black heat-resistant paint
• Double-wall pipe insulation material: Fire-resistant Mineral Wool

Includes

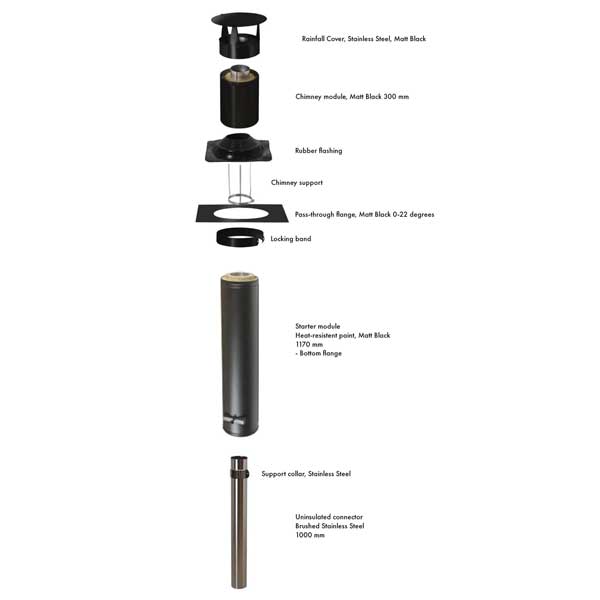

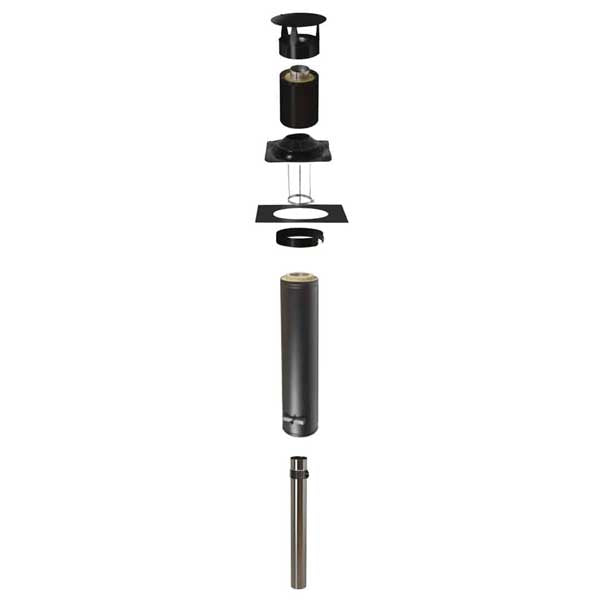

Includes (from top of chimney to bottom)

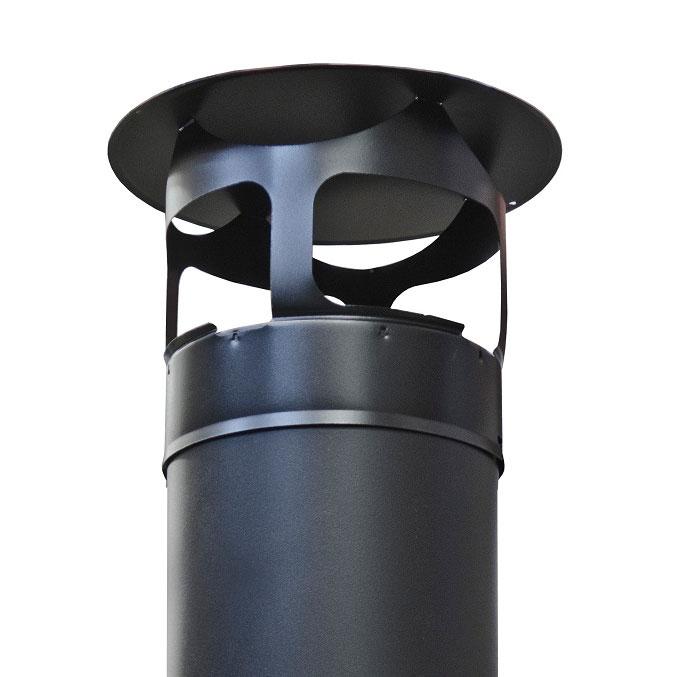

• Chimney Cap for rain protection

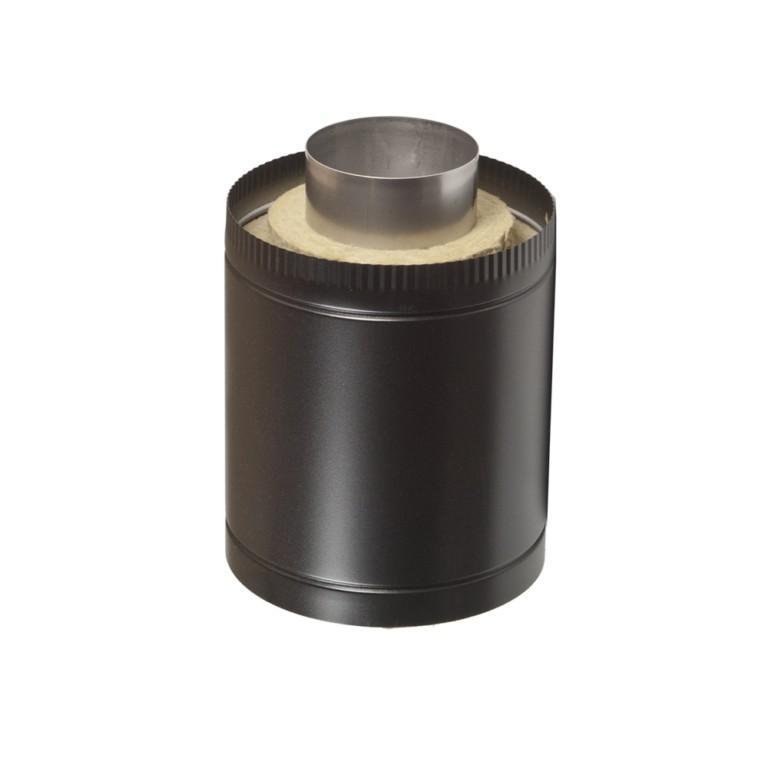

• 12" (300mm) double-wall, insulated Chimney Module (inner diameter 4.92"(125mm))
• Rubber Flashing boot to seal chimney pipe to roof (0-22 degree roof angle)
• Chimney Base support
• Pass-through flange (for 0–22 degree angled roof)
• Pass-through cover (height 15.75")
• Locking band to connect insulated chimney sections
• 47"(1200mm) double-wall insulated Chimney pipe with built-in damper (inner diameter 4.92"(125mm))
• Carrier ring of the flue with perforated band
• 39.4" (1000mm) non-insulated, stainless steel chimney pipe (inner diameter 4.72"(120mm)/ outside diameter 4.8"(122mm))
