Transform your sauna experience with state-of-the-art Spectrum Plus™ ceramic infrared heater panels, now available as a complete kit for both new sauna builds and retrofits. Engineered with Heat Shock™ short-wave ceramic technology, these UL-listed panels deliver up to 25x deeper infrared penetration than standard carbon panels. Ideal for muscle relaxation, pain relief, detoxification, improved circulation, and stress reduction.
Each heater kit is built for residential or commercial use and tested in a NASA-award-winning electromagnetic facility. The system features a UL-listed, ETL-certified power supply with a 30,000+ hour lifespan and a near-zero EMF rating (<1.17mG)—providing intense, safe, and consistent heat.
Infrared + Traditional Sauna Compatibility
Unlike most infrared panels, Spectrum+™ is compatible with traditional electric sauna heaters. Build a hybrid sauna and enjoy both dry infrared and high-humidity steam therapy in one room. Browse compatible electric sauna heaters.
Installation
These ceramic panels are designed to recess between 2x4 wall studs (3" depth required) before the final cladding is installed—ideal for new sauna builds. For retrofits, surface-mount versions are recommended unless the walls will be opened. Each kit includes a matched number of panels based on sauna room size.
V2 Digital WiFi Controller
The included V2 Touchscreen Controller allows precise temperature control up to 170°F and session durations up to 60 minutes. It features integrated WiFi connectivity for full remote control via the SmartLife smartphone app (iOS and Android compatible).
Features
-
170°F Max Heat – Significantly higher than traditional carbon panels (typically ~140°F)
-
Near-Zero EMF – Independently tested to emit less than 1.17 milligauss
-
Heat Shock™ Technology – Up to 25x deeper infrared penetration
-
Short-Wave Ceramic Emitters – Delivers intense and focused heat
-
Full-Circle Heating – Uniform 360° coverage throughout the room
-
Dual Micron Output – Emits both mid- and far-infrared for broader wellness benefits
-
High Emissivity – Produces up to 55% more usable infrared energy than carbon heaters
-
Rapid Heat-Up – Fastest warm-up time of any infrared panel system
-
UL & ETL Certified – Safe for both home and commercial settings
-
30,000+ Hour Lifespan – Low-maintenance operation for years to come
What’s Included
- Spectrum+ Ceramic Infrared Panels with cedar frames and protective grilles (see Specifications tab for panel count per room size)
-
V2 LCD Touchscreen WiFi Controller (3ft cable + 5ft extension)
- ETL-Certified Power Supply with 9ft heater cord
- 3M Temperature Sensor
- Unlimited Lifetime Warranty on Spectrum+ infrared heaters
Specifications
Specifications
-
Max Temp: 170°F
-
Installation: Recessed between 2x4 studs (3" clearance required)
-
Panel Size: 32"H x 9"W x 2"D
-
Panel Cable Length: 3ft
-
Controller Size: 5"H x 3"W x 1"D
-
Controller Cable: 3ft + 5ft extension
-
Certifications: UL-Listed Elements, ETL-Certified Power Supply

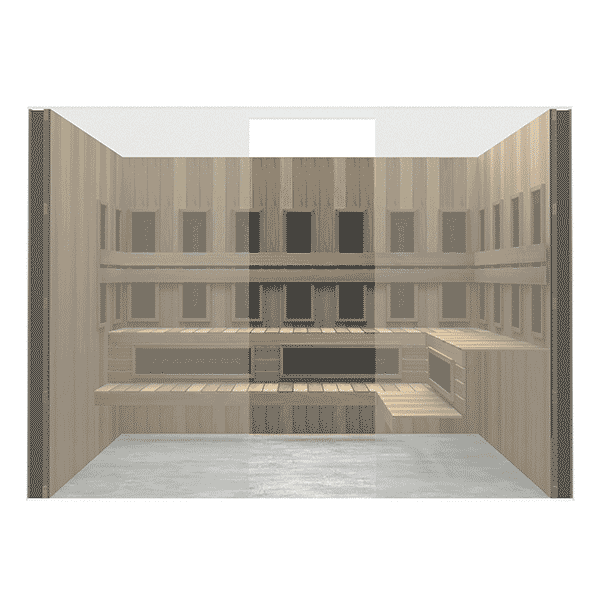

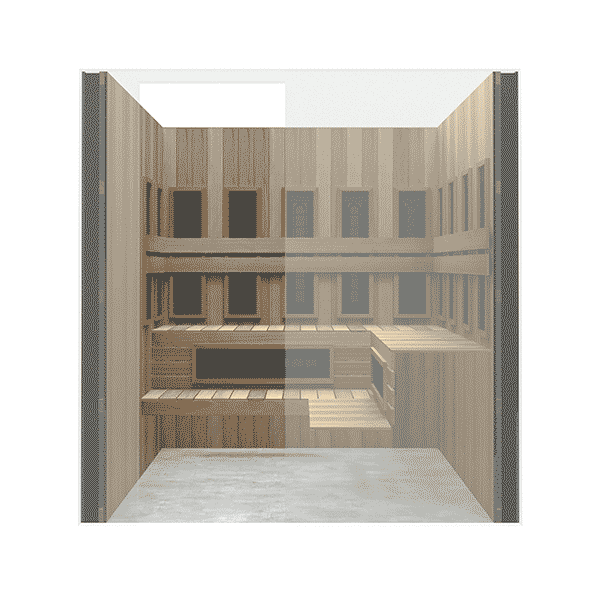

Room Kit Options
All kits include:
- Spectrum+ Ceramic Infrared Panels with cedar frame + grilles
- V2 WiFi Controller + Cables
- ETL Power Supply & 3M Sensor
- Unlimited Lifetime Warranty
Available Room Kits:
-

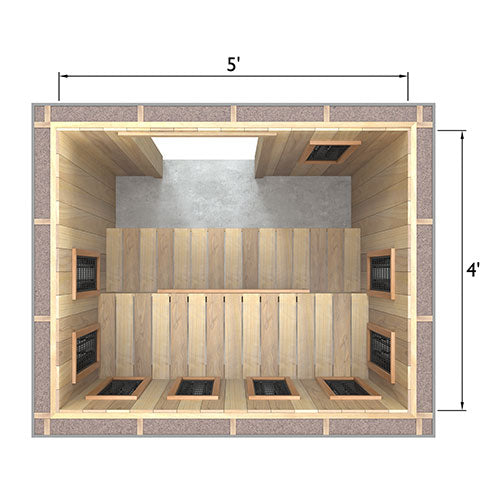

5' x 4': 9 panels | 3,150W | 240V | 13.2A
-
5' x 5': 11 panels | 3,850W | 240V | 16.1A
-
5' x 6': 12 panels | 4,200W | 240V | 17.5A
-
5' x 7': 13 panels | 4,550W | 240V | 19A
-
5' x 8': 14 panels | 4,900W | 240V | 20.5A
-
5' x 9': 15 panels | 5,250W | 240V | 22A
-
5' x 10': 16 panels | 5,600W | 240V | 23.4A
-
6' x 5': 12 panels | 4,200W | 240V | 17.5A
-
6' x 7': 14 panels | 4,900W | 240V | 20.5A
-
6' x 8': 15 panels | 5,250W | 240V | 22A
-
6' x 10': 17 panels | 5,950W | 240V | 24.8A
- For smaller room sizes, view 120V packages
- Chat with us for custom packages
